FLEX-5 · Patent Pending

Features

The FLEX-5 works with Allen Bradley ControlLogix, CompactLogix, and Micro800 PLCs — adding five powerful capabilities to your control system.

Allen Bradley ControlLogixAllen Bradley CompactLogixAllen Bradley Micro800
USB barcode scanner compatible with the FLEX-5
01

USB Barcode Scanner

Supports most USB barcode scanners. Plug and play into the FLEX-5 — no wiring needed.

  • ✓Plug-and-play with most USB scanners
  • ✓No wiring or extra hardware required
  • ✓Easily adapts to remote or hard-to-reach locations
Operator scanning a barcode in a process area
02

Bluetooth Barcode Scanner

Wireless barcode scanning anywhere in the process area.

  • ✓Supports most Bluetooth barcode scanners
  • ✓Supports intrinsically safe scanners
  • ✓Easily adapts to remote or hard-to-reach locations
Sample CSV data log written to a USB drive by the FLEX-5
03

Data Logging & Auto Reports

A cold-storage data historian straight from your PLC — CSV plus a fully populated Excel report, no SCADA required.

  • ✓Logs up to 42 parts per batch to CSV and a templated Excel report
  • ✓On-device archive keeps the last 30 files / 30 days, browsable and downloadable
  • ✓Finished batches mirror automatically to USB; recover any file on demand

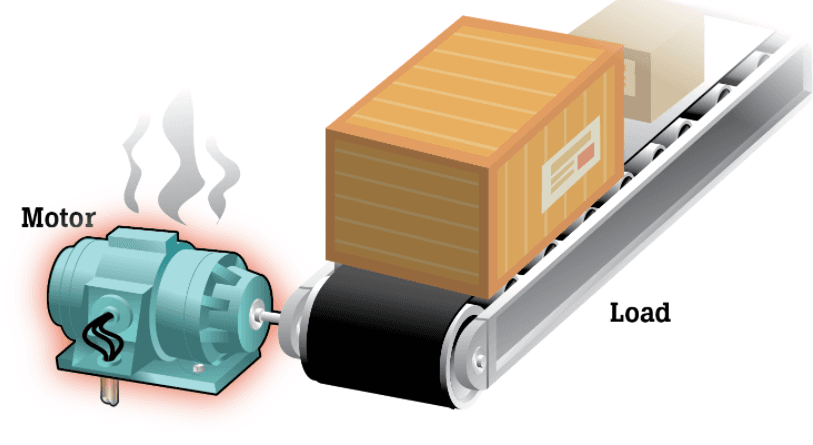

Monitoring motor and load equipment by ambient sound
04

Environment Sound

Real-time microphone monitoring so your controller can 'hear' equipment in remote areas.

  • ✓Samples at 44.1 kHz and streams an RMS amplitude back to the PLC
  • ✓Listen for alarms and monitor equipment by sound signature
  • ✓Verifies speaker and microphone functionality

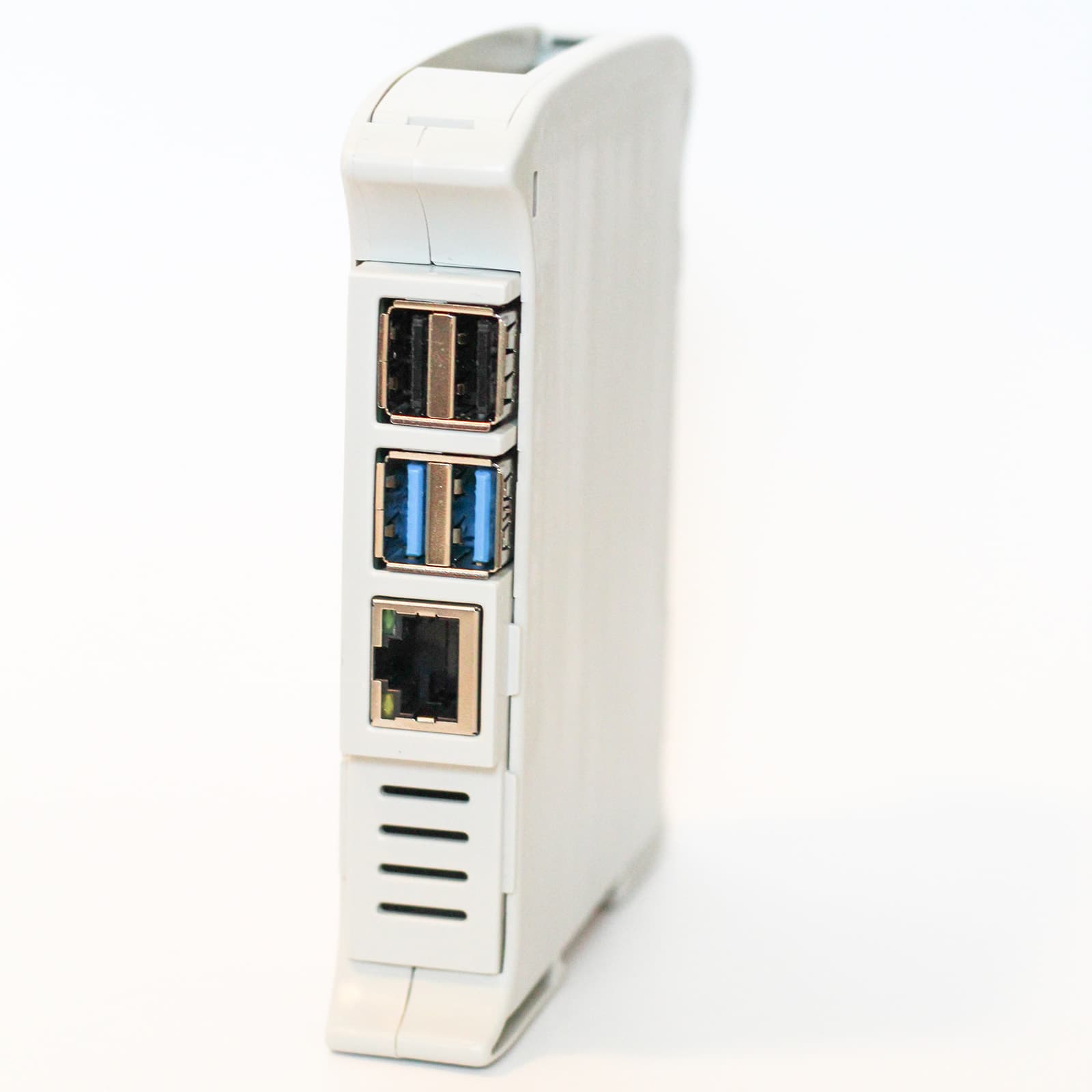

FLEX-5 connectivity ports — configured from the built-in web UI
05

Built-in Web Configuration

A browser-based setup UI served right from the device — nothing to install on your HMI or PC.

  • ✓Set the device IP and the PLC IP with live connection feedback
  • ✓Scan and pair Bluetooth devices, manage passkeys, restart or factory-reset
  • ✓Live status auto-refreshes every 5 seconds
Sound waves representing custom audio playback
06

Play Sound

Audible alarms, process instructions, safety audio and caution messages — controlled by your PLC.

  • ✓Up to 250 custom MP3 or WAV files
  • ✓Supports redundancy with dual units
  • ✓Language independent

Configure it to your line

See every customizable option, the software stack, and the PLC integration map.
